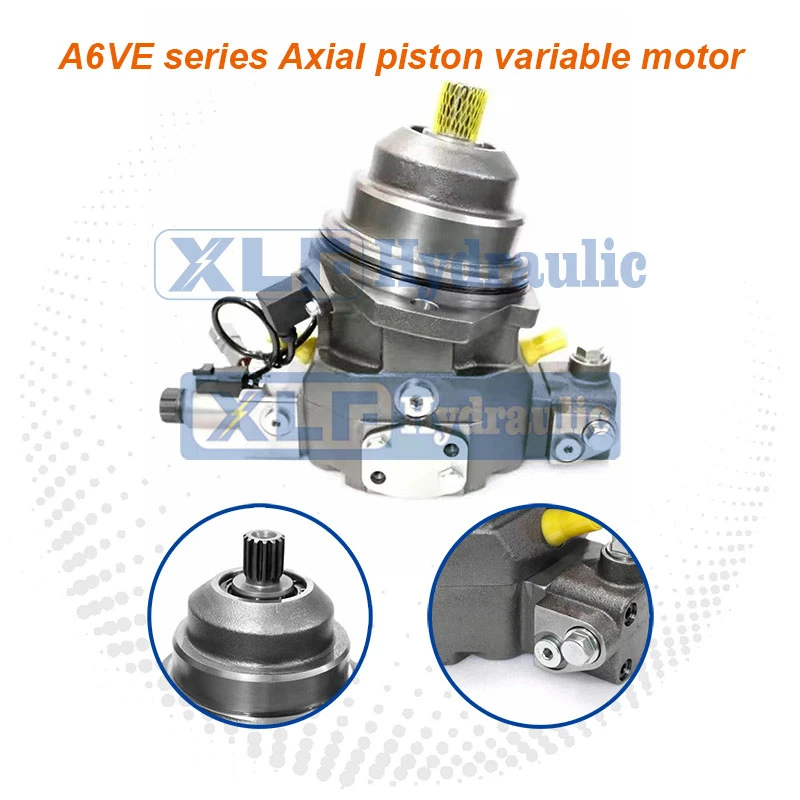

Rexroth A6veシリーズ63クローラーブルドーザー用の軸方向ドライブモーター
アプリケーション：クローラー掘削機
サイズ28および250
公称圧力400バー（サイズ28）
公称圧力350バー（サイズ250）
最大圧力450バー（サイズ28）
最大圧力400バー（サイズ250）
オープンおよびクローズドサーキット
製品の技術データ
XLF-A6VE軸ピストン固定ポンプ機能
1.元のブランドと完全に交換可能
2。非常に競争力のある価格
3.低ノイズ、高効率、高い信頼性、長いサービス寿命
4.小さいサイズ、高出力密度
5。優れたオイル吸収特性。
6. 1年保証
7。工学機器、海洋およびボート、産業用具など。
8。開いたループ付きの軸ピストンポンプの場合。
9.最大280 barの連続作業圧力、最大450 barまでの瞬時の最大作業圧力。
10。速度と変位に比例して流れ、可変ロック角度を調整することで達成できます
11.一定の圧力、一定の電力圧力、一定の電圧流量、その他の制御方法、および反応速度制御があります
12。ドライブシャフトは、軸方向および放射状の負荷に耐えることができます
13。SAEおよびISO取り付けフランジ
14。通過軸の構造とマルチループシステムの場合
15。圧力の下でいつでも開始します。
私たちの工場の主要な油圧ピストンポンプと油圧モーター。これらのオリジナルのシリーズ製品にかなり良い代替品を提供できます。これらのモデルを探している場合、私たちはあなたが長い間協力するに値するだけの適切なサプライヤーです。

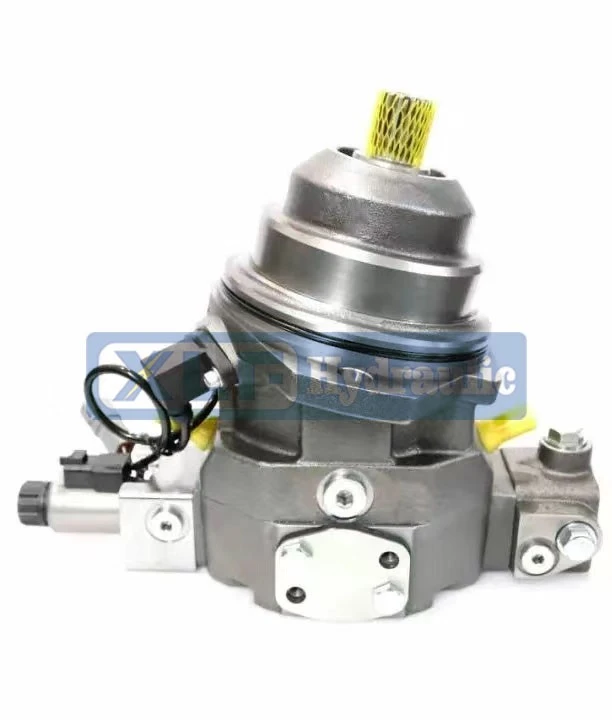

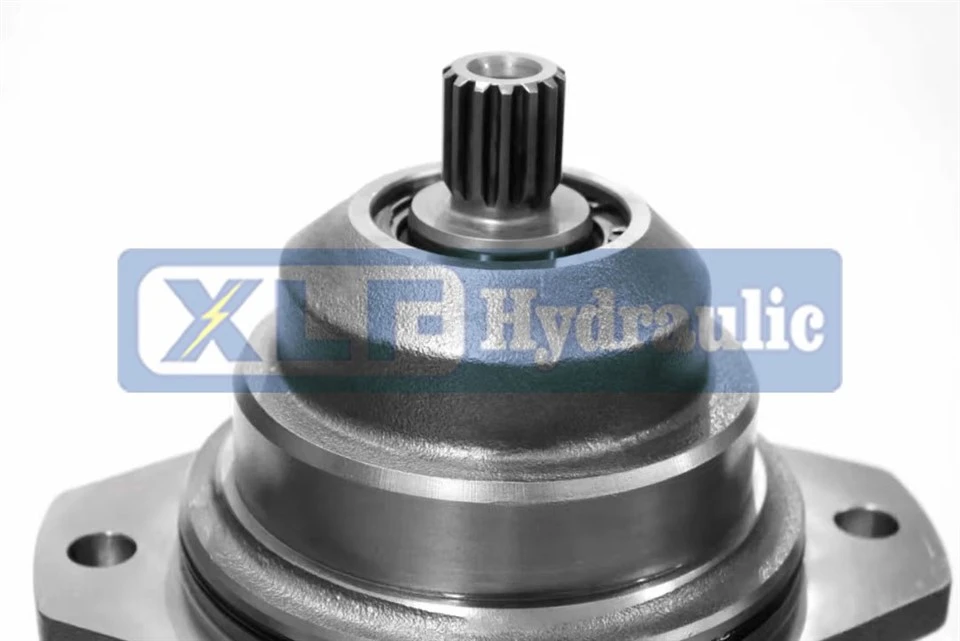

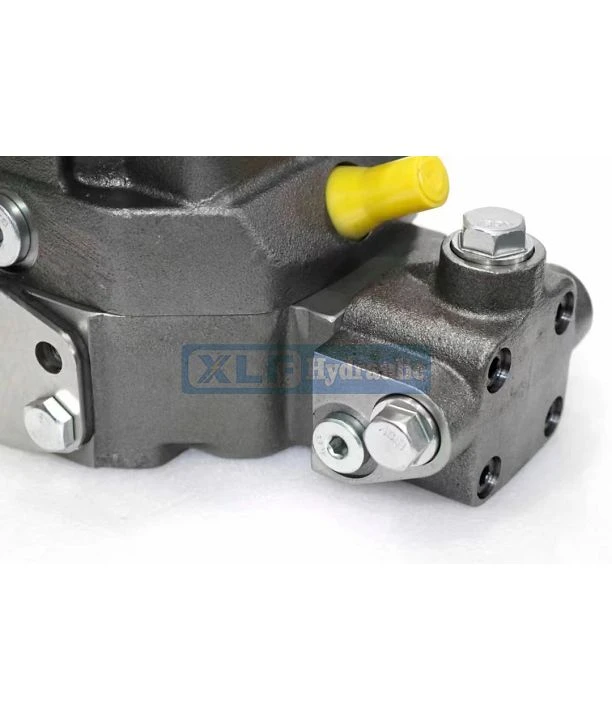

xlf-a6ve軸ピストン固定ポンプ製品の詳細画像
xlf-a6ve軸ピストン固定ポンプ技術データ
| RE 91606/10.07|A6ve Bosch AG 5（16 | ||||||||
| 技術データ シャフトシールリング |
温度範囲 | |||||||
| 許容圧力負荷 | FKMシャフトシールリングは、のケース温度で許容されます -25度+115程度まで。 |
|||||||
| シャフトシールリングのサービスリフトは速度の影響を受けます モーターとケースの排水圧力。それが推奨されます 操作時の平均的な継続的な症例ドレイン圧力 温度3バー絶対を超えない（max.permissible ケースドレーン圧力6バーは、減少したアピードで絶対に、dia-を参照してください - グラム）。ショート用語（t<0.1 s)pressures spikes of up to 10 bar absaluteは許可されています。シャフトシールリングのサービス寿命 圧力スパイクの頻度が増加する折り目。 症例圧力は、延長以下でなければなりません シャフトシールリングの圧力。 |
注記： | |||||||
| 25度以下のアプリケーションケースの場合、NBRシャフトシールリングは 必要（許容温度範囲：-40度から+90程度）。 注文時にNBRシャフトシールリングをプレーンテキストで述べてください。 私たちをカントクトしてください。 |
||||||||
| 制御の開始に対するケース圧力の影響 ケース圧力の増加は、次の影響を及ぼします 可変モーターの制御が始まるときの制御： |
||||||||
 |
ha1t（サイズ28〜160） | __ | 増加 | |||||
| Hd、er、ha、ha.t（size | 250) | 増加 | ||||||
| __ | ||||||||
| da _ _ | 減少 | |||||||
| 制御の開始は、の場合の圧力で工場で設定されます pata =2 bar（サイズ28〜160）およびpa =1 bar（eize 250）。 |
||||||||
| PMの速度n | ||||||||
| 値の表（理論的価値、efficiency and耐性なし、丸みを帯びた値） | ||||||||
| サイズのサイズ | 28 55 80 107 160 250 | |||||||
| 変位1）cm³ | 28.1 54.8 80 107 160 250 | |||||||
| Vaocm³ | 0 0 0 0 0 0 | |||||||
| スピードマックス。 y rpmのmu | 5550 4450 390 3550 310 270 | |||||||
| （nmtatv.cv rpmに準拠している間 | 8750 7000 615 5600 4900 3600 | |||||||
| max.permissible flow）van =0.63 xvcm³ | 18 35 51 68 101 1882 | |||||||
| V RPMのNMWA | 10450 8350 7350 6300 550 3600 | |||||||
| Max Flow 9vm Umi | 156 244 312 380 496 675 | |||||||
| Max Torgue TMA、Va 3 nm | 179 349 509 681 1019 1391 | |||||||
| ロータリーの硬さVEMAからVGZ CMN NM/RAD | 5670 10400 15500 21000 35300 59500 | |||||||
| vaaからoinarpdaed cmax nm/rad | 18100 32000 47900 65200 105000 181000 | |||||||
| ロータリーグループJWKGM²の慣性モーメント | 0.0014 0.0042 0.008 0.0127 0.0253 0.061 | |||||||
| 角度加速度最大A MD/E3 | 47000 31500 24000 19000 11000 10000 | |||||||
| 充填能力VL | 0.5 0.75 1.2 1.5 2.4 3.0 | |||||||
| 質量（Apprax。）ポートプレート02 m kg | 16 26 34 47 64 90 | |||||||
| ポートプレート22 m kg | 35 43 53 72 一 | |||||||
| 1）最小および最大変位は無限に変動します。2ページの注文コードを参照してください。 （順番で指定されていない場合を除き、サイズ250のデフォルト設定：vemn =0.2・vama vamar=vg。 2）vg₁=0.75 xvgma（約） |
||||||||
| 3）サイズ28〜160：AP =400 bar; size 250：ap =350 bar | ||||||||
| 注意：許容される制限値を超えると、機能の喪失、サービスLFEの減少、または 軸ピストンユニットの破壊。 |
||||||||
| 速度の変動に関して、その他の許容制限値、帯の関数としての角度加速度の低下 クエンと許容可能な起動角加速度（最大角加速よりも低い）が見つかります データシートRE 90261。 |
||||||||
| 詳細については、技術データシートRE 91604（可変モーターA6VM）を参照してください。 - 分解図と油圧液の選択に関する詳細 - アピードに関連する分散性変位と入口圧力 - ドライブシャフトに浸透性の放射状と軸荷重 - 制御ユニットの説明と寸法 |
||||||||
XLF-A6VE適用モデル
|
R902150301 A6VE060EP100P000A/71AWV0P2Z81D0-0 R902250549 A6VE060EP100P000A/71AWV0P2Z81DV-0 R902226163 A6VE060EP100P000A/71AWV0P2Z82AH-0 R902203740 A6VE060EP100P000A/71AWV0P2Z82AV-0 R902150279 A6VE060EP100P000A/71MLV0P2Z62BU-S R902150224 A6VE060EP100P000A/71MLV0P2Z62DH-S R902155091 A6VE060EP100P000A/71MLV0P2Z62DV-S R902150280 A6VE060EP100P000A/71MRV0P2Z62BU-S R902150223 A6VE060EP100P000A/71MRV0P2Z62DH-S R902155090 A6VE060EP100P000A/71MRV0P2Z62DV-S R902248336 A6VE060EP100P000A/71MWV0P2Z62AH-S R902231160 A6VE060EP100P000A/71MWV0P2Z82AH-0 R902207454 A6VE060EP100P000A/71MWVLP2Z620F-S R902207453 A6VE060EP100P000A/71MWVLP2Z62FF-S R902150211 A6VE060EP200P000A/71MLV0P2Z61DH-S R902155124 A6VE060EP200P000A/71MLV0P2Z61DV-S R902243256 A6VE060EP200P000A/71MLV0P2Z81BV-S R902150210 A6VE060EP200P000A/71MRV0P2Z61DH-S R902155123 A6VE060EP200P000A/71MRV0P2Z61DV-S R902243372 A6VE060EP200P000A/71MRV0P2Z81BV-S R902150214 A6VE060EP200P000A/71MWV0P2Z81BH-0 R902235039 |
A6VE060EP200P000A/71MWV0P2Z82BV-0 R902155094 A6VE060EP500P000A/71MWV0P2Z82FU-0 R902227890 A6VE060EP500P000A/71MWV0P2Z82FU-Y R902275597 A6VE060EP500P000C/71MWV0P2Z81CU-0 R902194296 A6VE060EP500P000E/71AWV0P2Z82CU-0 R902275594 A6VE060EP500P000E/71AWV0P2Z82CV-0 R902237091 A6VE060EP600P000A/71MWV0P2Z610V-0 R902155075 A6VE060EP600P000A/71MWV0P2Z610V-S R902170488 A6VE060EP600P000A/71MWV0P2Z620V-S R902150345 A6VE060EP600P000A/71MWV0P2Z81AV-0 R902235187 A6VE060EP600P000A/71MWV0P2Z81BV-0 R902150281 A6VE060EP600P000A/71MWV0P2Z82CV-0 R902239710 A6VE060EP600P000B/71MWV0P2Z620V-S R902237065 A6VE060EP600P001A/71MWV0P2Z82BV-0 R902207002 A6VE060EP600P001B/71MWV0P2Z62BV-S R902227750 A6VE060EP600T000A/71MWV0P2Z820V-0 R902237028 A6VE060EZ400P001B/71MWV0P2Z82B0-0 R902241961 A6VE060EZ400P001B/71MWV0P2Z82BV-0 R902207003 A6VE060EZ800P001B/71MWV0P2Z82AV-0 R902257762 A6VE060EZ800P001F/71MWV0P2Z82AU-0 R902255744 A6VE060EZ800P001G/71MWV0P2Z810U-0 R902255742 A6VE060EZ800Q001B/71MWV0P2Z6200-S R902245739 |
A6VE060EZ800Q001B/71MWV0P2Z620U-S R902162132 A6VE060EZ800Q001F/71MWV0P2Z6200-0 R902245740 A6VE060EZ800Q001F/71MWV0P2Z6200-S R902227694 A6VE060HA2T30002F/71MWV0P2Z8200-Y R902248117 A6VE060HA2T30002F/71MWV0P2Z820U-Y R902257547 A6VE060HA2T30002F/71MWV0P2Z820U-Y R902150313 A6VE060HA2T30004B/71MWV0P2Z81A0-0 R902150233 A6VE060HA2T30004B/71MWV0P2Z82A0-Y R902150331 A6VE060HP5000001E/71AWV0P2Z81F0-0 R902150251 A6VE060HZ7000001A/71MWV0P2Z8200-0 R902200110 A6VE060HZ7000001A/71MWV0P2Z820V-0 R902243473 A6VE060HZ7000001B/71CWV0P2Z82CF-S R902208658 A6VE060HZ7000001B/71MWV0P2Z61B0-S R902249590 A6VE060HZ7000001B/71MWV0P2Z820V-0 R902155130 A6VE060HZ7000001C/71MWV0P2Z82DV-0 R902222093 A6VE060HZ7000001F/71CWV0P2S72BF-S R902150347 a6ve060hz7000001f/71mwv0p2z 86 y0-0 R902194229 A6VE060HZ7000001G/71MWV0P2Z62A0-S R902248446 A6VE060HZ7000001G/71MWV0P2Z62AV-S R902150368 a6ve060hz7000001g/71mwv0p2z 86 y0-y R902211897 A6VE085EP100H004F/71MWVOY2Z9200-Y R902150309 A6VE085EP100P000A/71MLV0Y2Z92BV-S |
R902150277 A6VE085EP100P000A/71MLV0Y2Z92CU-S R902150310 A6VE085EP100P000A/71MRV0Y2Z92BV-S R902150278 A6VE085EP100P000A/71MRV0Y2Z92CU-S R902253946 A6VE085EP100P000A/71MWV0Y2Z91BV-0 R902150208 A6VE085EP100P000A/71MWV0Y2Z92AH-0 R902231162 A6VE085EP100P000A/71MWV0Y2Z92AH-0 R902150318 A6VE085EP100P000A/71MWV0Y2Z92BV-0 R902248162 A6VE085EP100P000A/71MWV0Y2Z92D0-0 R902232885 A6VE085EP100P000A/71MWV0Y2Z92FV-0 R902211532 A6VE085EP100P000A/71MWV0Y2Z92XV-Y R902275646 A6VE085EP100P000E/71MWV0Y2Z920U-0 R902243374 A6VE085EP200P000A/71MLV0Y2Z91BV-S R902243254 A6VE085EP200P000A/71MRV0Y2Z91BV-S R902150336 A6VE085EP200P000A/71MWV0Y2Z91XV-S R902150366 A6VE085EP200P000A/71MWV0Y2Z92BV-0 R902155137 A6VE085EP200P000A/71MWV0Y2Z92CV-0 R902155100 A6VE085EP200P000A/71MWV0Y2Z92XV-S R902155023 A6VE085EP200P000A/71MWV0Y2Z92XV-S R902251882 A6VE085EP200P000A/71MWV0Y2Z92XV-S R902155138 A6VE085EP200P000E/71MWV0Y2Z92CV-0 R902205905 A6VE085EP500H001F/71MWV0Y2Z9200-0 R902155133 |
|
A6VE085EP500P004F/71MWVOY2Z9200-Y R902150282 A6VE085EP600P000A/71MWV0Y2Z92CV-0 R902239711 A6VE085EP600P000B/71MWV0Y2Z920V-0 R902255842 A6VE085EP600P000B/71MWV0Y2Z920V-0 R902239836 A6VE085EP600P000B/71MWV0Y2Z92DV-0 R902220967 A6VE085EP600P000F/71MWV0Y2Z92C0-0 R902250866 A6VE085EP6D1H001E/71MWV0Y2Z97WU-0 R902162144 A6VE085EZ800Q001F/71MWV0Y2Z9200-0 R902253981 A6VE085HA100000XF/71MWV0Y2Z9200-Y R902233951 A6VE085HA2T30002F/71MWV0Y2Z920U-Y R902257676 A6VE085HA2T30004C/71MWV0Y2Z9200-0 R902251835 A6VE085HA2T30006C/71MWV0Y2Z920V-Y R902243279 A6VE085HP6000001F/71MWV0Y2Z9200-0 R902250979 A6VE085HP6D10001F/71MWV0Y2Z9200-0 R902227849 A6VE085HP6D20001G/71MWV0Y2Z9200-0 R902241811 A6VE085HZ7000001B/71MWV0Y2Z9100-0 R902222429 A6VE085HZ7000001G/71MWV0Y2Z9200-0 R902155055 A6VE085HZ7000001G/71MWV0Y2Z92B0-0 R902222443 A6VE115DA0000007C/71MWV0S2Z92C0-0 R902241817 A6VE115EP100P000A/71MLV0S2A12CV-S R902150221 A6VE115EP100P000A/71MLV0S2Z91DH-S R902155088 A6VE115EP100P000A/71MLV0S2Z91DV-0 R902247431 |
A6VE115EP100P000A/71MLV0S2Z92CH-S R902241816 A6VE115EP100P000A/71MRV0S2A12CV-S R902150222 A6VE115EP100P000A/71MRV0S2Z91DH-S R902155089 A6VE115EP100P000A/71MRV0S2Z91DV-0 R902247432 A6VE115EP100P000A/71MRV0S2Z92CH-S R902233784 A6VE115EP100P000A/71MWV0S2A12CH-0 R902231126 A6VE115EP100P000A/71MWV0S2A12CV-0 R902233791 A6VE115EP100P000A/71MWV0S2Z92BH-0 R902243267 A6VE115EP100P000A/71MWV0S2Z92CH-S R902223191 A6VE115EP100P000A/71MWV0S2Z92CH-S R902243185 A6VE115EP100P000C/71MWV0S2Z920F-0 R902243186 A6VE115EP100P000C/71MWV0S2Z92FF-0 R902150213 A6VE115EP200P000A/71MLV0S2Z91DH-S R902207038 A6VE115EP200P000A/71MLV0S2Z91DV-0 R902150288 A6VE115EP200P000A/71MLV0S2Z91DV-S R902150212 A6VE115EP200P000A/71MRV0S2Z91DH-S R902207039 A6VE115EP200P000A/71MRV0S2Z91DV-0 R902150289 A6VE115EP200P000A/71MRV0S2Z91DV-S R902155059 A6VE115EP200P000A/71MWV0S2Z91DV-0 R902150367 A6VE115EP600P000A/71MWV0S2Z92BV-0 R902240326 A6VE115EP600P000A/71MWV0S2Z92CH-0 R902170336 A6VE115EP600P000B/71MWV0S2Z91FV-0 R902260248 |
A6VE115EP600P000B/71MWV0S2Z920V-0 R902150261 A6VE115EP600P000B/71MWV0S2Z92CF-0 R902245227 A6VE115EP600P000B/71MWV0S2Z92DV-0 R902257750 A6VE115EP600P000E/71MWV0S2Z920U-0 R902150266 A6VE115EP600P000E/71MWV0S2Z920V-0 R902250867 A6VE115EP6D1H001E/71MWV0S2Z97WU-0 R902261108 A6VE115EP6D1P001G/71MWV0S2Z9100-0 R902237289 A6VE115EZ700P001F/71MWV0S2Z92DU-0 R902150335 A6VE115EZ800P001D/71MWV0S2Z91F0-0 R902170181 A6VE115EZ800P001F/71MWV0S2A120U-0 R902205643 A6VE115EZ800P001X/71AWV0S2Z92FU-S R902248200 A6VE115HA1T30004F/71MWV0S2Z92FU-0 R902275549 A6VE115HA1T30004G/71MWV0S2Z9200-Y R902150329 A6VE115HA1T30004G/71MWV0S2Z92C0-0 R902237040 A6VE115HA2000004D/71MWV0S2A11FV-S R902227636 A6VE115HA2T30004B/71MWV0S2Z9200-0 R902251661 A6VE115HA2T30004B/71MWV0S2Z9200-0 R902241709 A6VE115HA2T30004E/71MWV0S2Z9200-0 R902255987 A6VE115HA2T3000XB/71MWV0S2Z9200-Y R902247400 A6VE115HA3T30001C/71MWV0S2A16YV-S R902241683 A6VE115HA3T30001C/71MWV0S2A16YV-S R902150325 A6VE115HA3T30001G/71MWV0S2Z96ZU-0 R902150365 |
A6VE115HA3T30001G/71MWV0S2Z96ZV-Y R902150272 A6VE115HP5D10001H/71MWV0S2Z98W0-0 R902253743 A6VE115HP5D10001K/71MWP0S2Z9200-0 R902249844 A6VE115HZ7000001C/71MWV0S2Z92AU-0 R902150275 A6VE115HZ7000001C/71MWV0S2Z96Y0-0 R902150364 A6VE115HZ7000001C/71MWV0S2Z96Y0-0 R902255847 A6VE115HZ7000001G/71CWV0S2Z96Z0-0 R902241819 A6VE170EP100P000A/71MLV0S2A12CV-S R902241818 A6VE170EP100P000A/71MRV0S2A12CV-S R902233785 A6VE170EP100P000A/71MWV0S2A12CH-0 R902231125 A6VE170EP100P000A/71MWV0S2A12CV-0 R902233526 A6VE170EP100P000A/71MWV0S2A12DH-0 R902255588 A6VE170EP200P000A/71MLV0S2A12DV-S R902255589 A6VE170EP200P000A/71MRV0S2A12DV-S R902223287 A6VE170EP200P001C/71MWV0S2A18W0-0 R902247372 A6VE170EP500P000C/71MWV0S2A12DV-0 R902150284 A6VE170EP600P000B/71MWV0S2A12IV-0 R902150350 A6VE170EP600P000C/71MWV0S2A12D0-0 R902150262 A6VE170EP600P000D/71MWV0S2A12MU-0 R902231018 A6VE170EP600P000E/71MWV0S2A220H-0 R902247426 A6VE170EP600P000F/71MWV0S2A12DV-0 R902150324 A6VE170EP600P000F/71MWV0S2A12EV-0 R902204652 |
|
A6VE170EP6D1H001F/71NWV0S2A22D0-S R902251803 A6VE170EP6D1H001F/71XWV0S2A18WU-S R902243266 A6VE170EP6D1P001C/71MWV0S2A120H-0 R902205915 A6VE170EP6D1P001C/71MWV0S2A120H-0 R902239639 A6VE170HA100000XD/71MWV0S2A11X0-S R902150334 A6VE170HA1T30004F/71MWV0S2A12G0-0 R902247367 A6VE170HA1T30004F/71MWV0S2A12GU-0 R902223215 A6VE170HA1T30004G/71MWV0S2A12GU-0 R902215203 A6VE170HA2000004G/71MWV0S2A12D0-0 R902150230 A6VE170HA2000004G/71MWV0S2A12D0-0 R902261010 A6VE170HA2000004H/71MWV0S2A11DU-0 R902150308 A6VE170HA2000004H/71MWV0S2A11GV-S R902255821 A6VE170HA200000XG/71MWV0S2A11JV-S R902150369 A6VE170HA2T30004C/71MWV0S2A12G0-0 R902241708 A6VE170HA2T30004F/71MWV0S2A1200-0 R902275609 A6VE170HA3T30001C/71MWV0S2A16Y0-0 R902150341 A6VE170HA3T30001G/71MWV0S2A16ZU-0 R902205968 A6VE170HA3T30001G/71MWV0S2A26Y0-0 R986PT0887 A6VE170HA3T30001X/71MWV0S2A16Y0-S R902240161 A6VE170HP5D10001H/71MWV0S2A18WF-S R902240111 A6VE170HP5D10001H/71MWV0S2A18WF-S R902259002 A6VE170HP5D10001X/71MWV0S2A18WF-S R902150371 |
A6VE170HP5D20001G/71MWV0S2A12D0-0 R902242658 A6VE170HP6000000C/71MWV0S2A16YV-S R902233898 A6VE170HP6000000F/71MWV0S2A2100-0 R902227759 A6VE170HZ5000000G/71MWV0S2A12D0-0 R902239753 A6VE170HZ5000001C/71MWV0S2A1100-0 R902150354 A6VE170HZ7000001C/71MWV0S2A16Z0-0 R902150285 A6VE170HZ7000001G/71MWV0S2A16Y0-0 R902220818 A6VE170HZ7000001H/71MWV0S2A16Z0-0 R902567835 A6VE280EP600P000F/71MWV0Z4A29WV-S R902550997 A6VE280HZ6000001F/71CWV0Z4A29WF-S R902518036 A6VE280HZ6000001X/71CWV0Z4T29W0-S R902518038 A6VE280HZ6000001X/71CWV0Z4T29W0-S R902150301 A6VE060EP100P000A/71AWV0P2Z81D0-0 R902250549 A6VE060EP100P000A/71AWV0P2Z81DV-0 R902226163 A6VE060EP100P000A/71AWV0P2Z82AH-0 R902203740 A6VE060EP100P000A/71AWV0P2Z82AV-0 R902150279 A6VE060EP100P000A/71MLV0P2Z62BU-S R902150224 A6VE060EP100P000A/71MLV0P2Z62DH-S R902155091 A6VE060EP100P000A/71MLV0P2Z62DV-S R902150280 A6VE060EP100P000A/71MRV0P2Z62BU-S R902150223 A6VE060EP100P000A/71MRV0P2Z62DH-S R902155090 A6VE060EP100P000A/71MRV0P2Z62DV-S R902248336 |
A6VE060EP100P000A/71MWV0P2Z62AH-S R902231160 A6VE060EP100P000A/71MWV0P2Z82AH-0 R902207454 A6VE060EP100P000A/71MWVLP2Z620F-S R902207453 A6VE060EP100P000A/71MWVLP2Z62FF-S R902150211 A6VE060EP200P000A/71MLV0P2Z61DH-S R902155124 A6VE060EP200P000A/71MLV0P2Z61DV-S R902243256 A6VE060EP200P000A/71MLV0P2Z81BV-S R902150210 A6VE060EP200P000A/71MRV0P2Z61DH-S R902155123 A6VE060EP200P000A/71MRV0P2Z61DV-S R902243372 A6VE060EP200P000A/71MRV0P2Z81BV-S R902150214 A6VE060EP200P000A/71MWV0P2Z81BH-0 R902235039 A6VE060EP200P000A/71MWV0P2Z82BV-0 R902155094 A6VE060EP500P000A/71MWV0P2Z82FU-0 R902227890 A6VE060EP500P000A/71MWV0P2Z82FU-Y R902275597 A6VE060EP500P000C/71MWV0P2Z81CU-0 R902194296 A6VE060EP500P000E/71AWV0P2Z82CU-0 R902275594 A6VE060EP500P000E/71AWV0P2Z82CV-0 R902237091 A6VE060EP600P000A/71MWV0P2Z610V-0 R902155075 A6VE060EP600P000A/71MWV0P2Z610V-S R902170488 A6VE060EP600P000A/71MWV0P2Z620V-S R902150345 A6VE060EP600P000A/71MWV0P2Z81AV-0 R902235187 A6VE060EP600P000A/71MWV0P2Z81BV-0 R902150281 |
A6VE060EP600P000A/71MWV0P2Z82CV-0 R902239710 A6VE060EP600P000B/71MWV0P2Z620V-S R902237065 A6VE060EP600P001A/71MWV0P2Z82BV-0 R902207002 A6VE060EP600P001B/71MWV0P2Z62BV-S R902227750 A6VE060EP600T000A/71MWV0P2Z820V-0 R902237028 A6VE060EZ400P001B/71MWV0P2Z82B0-0 R902241961 A6VE060EZ400P001B/71MWV0P2Z82BV-0 R902207003 A6VE060EZ800P001B/71MWV0P2Z82AV-0 R902257762 A6VE060EZ800P001F/71MWV0P2Z82AU-0 R902255744 A6VE060EZ800P001G/71MWV0P2Z810U-0 R902255742 A6VE060EZ800Q001B/71MWV0P2Z6200-S R902245739 A6VE060EZ800Q001B/71MWV0P2Z620U-S R902162132 A6VE060EZ800Q001F/71MWV0P2Z6200-0 R902245740 A6VE060EZ800Q001F/71MWV0P2Z6200-S R902227694 A6VE060HA2T30002F/71MWV0P2Z8200-Y R902248117 A6VE060HA2T30002F/71MWV0P2Z820U-Y R902257547 A6VE060HA2T30002F/71MWV0P2Z820U-Y R902150313 A6VE060HA2T30004B/71MWV0P2Z81A0-0 R902150233 A6VE060HA2T30004B/71MWV0P2Z82A0-Y R902150331 A6VE060HP5000001E/71AWV0P2Z81F0-0 R902150251 A6VE060HZ7000001A/71MWV0P2Z8200-0 R902200110 A6VE060HZ7000001A/71MWV0P2Z820V-0 R902243473 |
|
A6VE060HZ7000001B/71CWV0P2Z82CF-S R902208658 A6VE060HZ7000001B/71MWV0P2Z61B0-S R902249590 A6VE060HZ7000001B/71MWV0P2Z820V-0 R902155130 A6VE060HZ7000001C/71MWV0P2Z82DV-0 R902222093 A6VE060HZ7000001F/71CWV0P2S72BF-S R902150347 a6ve060hz7000001f/71mwv0p2z 86 y0-0 R902194229 A6VE060HZ7000001G/71MWV0P2Z62A0-S R902248446 A6VE060HZ7000001G/71MWV0P2Z62AV-S R902150368 a6ve060hz7000001g/71mwv0p2z 86 y0-y R902211897 A6VE085EP100H004F/71MWVOY2Z9200-Y R902150309 A6VE085EP100P000A/71MLV0Y2Z92BV-S R902150277 A6VE085EP100P000A/71MLV0Y2Z92CU-S R902150310 A6VE085EP100P000A/71MRV0Y2Z92BV-S R902150278 A6VE085EP100P000A/71MRV0Y2Z92CU-S R902253946 A6VE085EP100P000A/71MWV0Y2Z91BV-0 R902150208 A6VE085EP100P000A/71MWV0Y2Z92AH-0 R902231162 A6VE085EP100P000A/71MWV0Y2Z92AH-0 R902150318 A6VE085EP100P000A/71MWV0Y2Z92BV-0 R902248162 A6VE085EP100P000A/71MWV0Y2Z92D0-0 R902232885 A6VE085EP100P000A/71MWV0Y2Z92FV-0 R902211532 A6VE085EP100P000A/71MWV0Y2Z92XV-Y R902275646 A6VE085EP100P000E/71MWV0Y2Z920U-0 R902243374 |
A6VE085EP200P000A/71MLV0Y2Z91BV-S R902243254 A6VE085EP200P000A/71MRV0Y2Z91BV-S R902150336 A6VE085EP200P000A/71MWV0Y2Z91XV-S R902150366 A6VE085EP200P000A/71MWV0Y2Z92BV-0 R902155137 A6VE085EP200P000A/71MWV0Y2Z92CV-0 R902155100 A6VE085EP200P000A/71MWV0Y2Z92XV-S R902155023 A6VE085EP200P000A/71MWV0Y2Z92XV-S R902251882 A6VE085EP200P000A/71MWV0Y2Z92XV-S R902155138 A6VE085EP200P000E/71MWV0Y2Z92CV-0 R902205905 A6VE085EP500H001F/71MWV0Y2Z9200-0 R902155133 A6VE085EP500P004F/71MWVOY2Z9200-Y R902150282 A6VE085EP600P000A/71MWV0Y2Z92CV-0 R902239711 A6VE085EP600P000B/71MWV0Y2Z920V-0 R902255842 A6VE085EP600P000B/71MWV0Y2Z920V-0 R902239836 A6VE085EP600P000B/71MWV0Y2Z92DV-0 R902220967 A6VE085EP600P000F/71MWV0Y2Z92C0-0 R902250866 A6VE085EP6D1H001E/71MWV0Y2Z97WU-0 R902162144 A6VE085EZ800Q001F/71MWV0Y2Z9200-0 R902253981 A6VE085HA100000XF/71MWV0Y2Z9200-Y R902233951 A6VE085HA2T30002F/71MWV0Y2Z920U-Y R902257676 A6VE085HA2T30004C/71MWV0Y2Z9200-0 R902251835 A6VE085HA2T30006C/71MWV0Y2Z920V-Y R902243279 |
A6VE085HP6000001F/71MWV0Y2Z9200-0 R902250979 A6VE085HP6D10001F/71MWV0Y2Z9200-0 R902227849 A6VE085HP6D20001G/71MWV0Y2Z9200-0 R902241811 A6VE085HZ7000001B/71MWV0Y2Z9100-0 R902222429 A6VE085HZ7000001G/71MWV0Y2Z9200-0 R902155055 A6VE085HZ7000001G/71MWV0Y2Z92B0-0 R902222443 A6VE115DA0000007C/71MWV0S2Z92C0-0 R902241817 A6VE115EP100P000A/71MLV0S2A12CV-S R902150221 A6VE115EP100P000A/71MLV0S2Z91DH-S R902155088 A6VE115EP100P000A/71MLV0S2Z91DV-0 R902247431 A6VE115EP100P000A/71MLV0S2Z92CH-S R902241816 A6VE115EP100P000A/71MRV0S2A12CV-S R902150222 A6VE115EP100P000A/71MRV0S2Z91DH-S R902155089 A6VE115EP100P000A/71MRV0S2Z91DV-0 R902247432 A6VE115EP100P000A/71MRV0S2Z92CH-S A6VE115EP100P000A/71MWV0S2A12CH-0 R902231126 A6VE115EP100P000A/71MWV0S2A12CV-0 R902233791 A6VE115EP100P000A/71MWV0S2Z92BH-0 R902243267 A6VE115EP100P000A/71MWV0S2Z92CH-S R902223191 A6VE115EP100P000A/71MWV0S2Z92CH-S R902243185 A6VE115EP100P000C/71MWV0S2Z920F-0 R902243186 A6VE115EP100P000C/71MWV0S2Z92FF-0 R902150213 A6VE115EP200P000A/71MLV0S2Z91DH-S |
R902207038 A6VE115EP200P000A/71MLV0S2Z91DV-0 R902150288 A6VE115EP200P000A/71MLV0S2Z91DV-S R902150212 A6VE115EP200P000A/71MRV0S2Z91DH-S R902207039 A6VE115EP200P000A/71MRV0S2Z91DV-0 R902150289 A6VE115EP200P000A/71MRV0S2Z91DV-S R902155059 A6VE115EP200P000A/71MWV0S2Z91DV-0 R902150367 A6VE115EP600P000A/71MWV0S2Z92BV-0 R902240326 A6VE115EP600P000A/71MWV0S2Z92CH-0 R902170336 A6VE115EP600P000B/71MWV0S2Z91FV-0 R902260248 A6VE115EP600P000B/71MWV0S2Z920V-0 R902150261 A6VE115EP600P000B/71MWV0S2Z92CF-0 R902245227 A6VE115EP600P000B/71MWV0S2Z92DV-0 R902257750 A6VE115EP600P000E/71MWV0S2Z920U-0 R902150266 A6VE115EP600P000E/71MWV0S2Z920V-0 R902250867 A6VE115EP6D1H001E/71MWV0S2Z97WU-0 R902261108 A6VE115EP6D1P001G/71MWV0S2Z9100-0 R902237289 A6VE115EZ700P001F/71MWV0S2Z92DU-0 R902150335 A6VE115EZ800P001D/71MWV0S2Z91F0-0 R902170181 A6VE115EZ800P001F/71MWV0S2A120U-0 R902205643 A6VE115EZ800P001X/71AWV0S2Z92FU-S R902248200 A6VE115HA1T30004F/71MWV0S2Z92FU-0 R902275549 A6VE115HA1T30004G/71MWV0S2Z9200-Y |
|
R902150329 A6VE115HA1T30004G/71MWV0S2Z92C0-0 R902237040 A6VE115HA2000004D/71MWV0S2A11FV-S R902227636 A6VE115HA2T30004B/71MWV0S2Z9200-0 R902251661 A6VE115HA2T30004B/71MWV0S2Z9200-0 R902241709 A6VE115HA2T30004E/71MWV0S2Z9200-0 R902255987 A6VE115HA2T3000XB/71MWV0S2Z9200-Y R902247400 A6VE115HA3T30001C/71MWV0S2A16YV-S R902241683 A6VE115HA3T30001C/71MWV0S2A16YV-S R902150325 A6VE115HA3T30001G/71MWV0S2Z96ZU-0 R902150365 A6VE115HA3T30001G/71MWV0S2Z96ZV-Y R902150272 A6VE115HP5D10001H/71MWV0S2Z98W0-0 R902253743 A6VE115HP5D10001K/71MWP0S2Z9200-0 R902249844 A6VE115HZ7000001C/71MWV0S2Z92AU-0 R902150275 A6VE115HZ7000001C/71MWV0S2Z96Y0-0 R902150364 A6VE115HZ7000001C/71MWV0S2Z96Y0-0 R902255847 A6VE115HZ7000001G/71CWV0S2Z96Z0-0 R902241819 A6VE170EP100P000A/71MLV0S2A12CV-S R902241818 A6VE170EP100P000A/71MRV0S2A12CV-S R902233785 A6VE170EP100P000A/71MWV0S2A12CH-0 R902231125 A6VE170EP100P000A/71MWV0S2A12CV-0 R902233526 A6VE170EP100P000A/71MWV0S2A12DH-0 R902255588 A6VE170EP200P000A/71MLV0S2A12DV-S |
R902255589 A6VE170EP200P000A/71MRV0S2A12DV-S R902223287 A6VE170EP200P001C/71MWV0S2A18W0-0 R902247372 A6VE170EP500P000C/71MWV0S2A12DV-0 R902150284 A6VE170EP600P000B/71MWV0S2A12IV-0 R902150350 A6VE170EP600P000C/71MWV0S2A12D0-0 R902150262 A6VE170EP600P000D/71MWV0S2A12MU-0 R902231018 A6VE170EP600P000E/71MWV0S2A220H-0 R902247426 A6VE170EP600P000F/71MWV0S2A12DV-0 R902150324 A6VE170EP600P000F/71MWV0S2A12EV-0 R902204652 A6VE170EP6D1H001F/71NWV0S2A22D0-S R902251803 A6VE170EP6D1H001F/71XWV0S2A18WU-S R902243266 A6VE170EP6D1P001C/71MWV0S2A120H-0 R902205915 A6VE170EP6D1P001C/71MWV0S2A120H-0 R902239639 A6VE170HA100000XD/71MWV0S2A11X0-S R902150334 A6VE170HA1T30004F/71MWV0S2A12G0-0 R902247367 A6VE170HA1T30004F/71MWV0S2A12GU-0 R902223215 A6VE170HA1T30004G/71MWV0S2A12GU-0 R902215203 A6VE170HA2000004G/71MWV0S2A12D0-0 R902150230 A6VE170HA2000004G/71MWV0S2A12D0-0 R902261010 A6VE170HA2000004H/71MWV0S2A11DU-0 R902150308 A6VE170HA2000004H/71MWV0S2A11GV-S R902255821 A6VE170HA200000XG/71MWV0S2A11JV-S |
R902150369 A6VE170HA2T30004C/71MWV0S2A12G0-0 R902241708 A6VE170HA2T30004F/71MWV0S2A1200-0 R902275609 A6VE170HA3T30001C/71MWV0S2A16Y0-0 R902150341 A6VE170HA3T30001G/71MWV0S2A16ZU-0 R902205968 A6VE170HA3T30001G/71MWV0S2A26Y0-0 R986PT0887 A6VE170HA3T30001X/71MWV0S2A16Y0-S R902240161 A6VE170HP5D10001H/71MWV0S2A18WF-S R902240111 A6VE170HP5D10001H/71MWV0S2A18WF-S R902259002 A6VE170HP5D10001X/71MWV0S2A18WF-S R902150371 A6VE170HP5D20001G/71MWV0S2A12D0-0 R902242658 A6VE170HP6000000C/71MWV0S2A16YV-S R902233898 A6VE170HP6000000F/71MWV0S2A2100-0 R902227759 A6VE170HZ5000000G/71MWV0S2A12D0-0 R902239753 A6VE170HZ5000001C/71MWV0S2A1100-0 R902150354 A6VE170HZ7000001C/71MWV0S2A16Z0-0 R902150285 A6VE170HZ7000001G/71MWV0S2A16Y0-0 R902220818 A6VE170HZ7000001H/71MWV0S2A16Z0-0 R902567835 A6VE280EP600P000F/71MWV0Z4A29WV-S R902550997 A6VE280HZ6000001F/71CWV0Z4A29WF-S R902518036 A6VE280HZ6000001X/71CWV0Z4T29W0-S R902518038 A6VE280HZ6000001X/71CWV0Z4T29W0-S |
